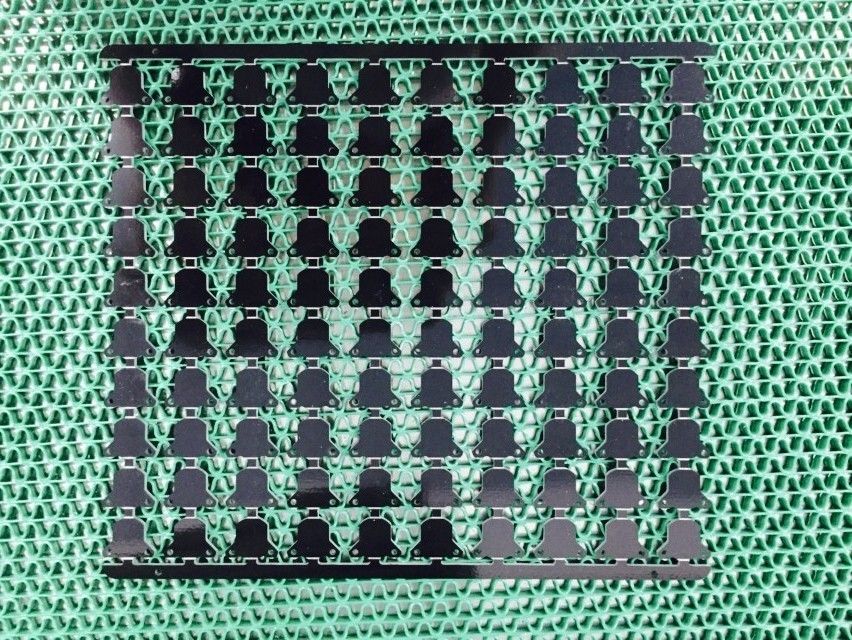

Rigid Double Sided Green PCB Fabrication LED PCB Board Assembly Manufacture
Technical Specification For PCB
| Number of Layer |
1,2,4 or 6,upto 18 layer |
| Order Quantity |
1 to 50,000 |
| Board Shape |
Retangular,round,slots,cutouts,complex,irregular |
| Board Type |
Rigid, Flexible, Rigid-flexible |
| Board Material |
FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc. |
| Board Cutting |
Shear,V-score,Tab-routed |
| Board Thickness |
0.2-4.0mm, Flex 0.01-0.25mm |
| Copper Weight |
1.0, 1.5, 2.0 oz |
| Solder Mask |
Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
| Silk Screen |
Double-sided or single-sided in white,yellow,black,or negative |
| Silk Screen Min Line Width |
0.006'' or 0.15mm |
| Max Board Dimensions |
20 inch*20inch or 500mm*500mm |
| Min Trace/Gap |
0.10mm, or 4mils |
| Min Drill Hole Diameter |
0.01'',0.25mm, or 10mils |
| Surface Finish |
HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc. |
| Board Thickness Tolerance |
±10% |
| Copper Weight Tolerance |
± 0.25 oz |
| Minimal Slot Width |
0.12'', 3.0mm, or 120mils |
| V-Score Depth |
20-25% of board thickness |
| Design File Formate |
Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG |
PCB Assembly Capabilities
| Quantity |
Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
| Type of Assembly |
SMT,Thru-hole |
| Solder Type |
Water Soluble Solder Paste,Leaded and Lead-Free |
| Components |
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
|
| Bare Board Size |
Smallest:0.25*0.25 inches
Largest:20*20 inches
|
| File Formate |
Bill of Materials
Gerber files
Pick-N-Place file
|
| Types of Service |
Turn-key,partial turn-key or consignment |
| Component packaging |
Cut Tape,Tube,Reels,Loose Parts |
| Turn Time |
Same day service to 15 days service |
| Testing |
Flying Probe Test,X-ray Inspection AOI Test |
| PCB assembly process |
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
|
Lead Time
Samples: 3-4 days
Mass Production: 7-15 days(depend on the quantity)
Payment Terms
T/T,Western Union
Packing and Shipment
Vacuum package in carton
We are able to provide you best electronics services:
- PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,CEM-1 )
- FPC,PCB Copy Service.
- PCB Assembly Service. (SMT, BGA, DIP)
- IC program with HEX file.
- PCBA Housing assembly serivce.
- PCBA Final Functional Testing.
- PCBA Copy Service.
- Electronic Components Purchasing & BOM List Purchasing Services.
- PCB SMT Stencil. (Laser cut & Etching)
- Cable assembly
Technical requirement for pcb assembly:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603,0402 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement for pcb and pcb assembly:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
Applications of Products:
1.Computers and relevant products: Movable power board, U Disk, network interface, panel computer, cameral, wire-less mouse.
2.Home appliance: smart projector/digital cameral, high-frequency board. Recorder and repeater board, auto audio equipment main board and control board.
3.Wire-less communication: mobile board,. GPS/ direction record board, wireless telephone main board, intercom main board.
4.LED Lighting: LED drive power, LED light panel, LED light belt.
Why us?
Quality
Our UL(E465880)/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, JHD PCB will adhere to the highest quality standards.
Capable
JHD PCB offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.
Experience
When it comes to your build you want a partner you can depend on. Our management team has over 8years of combined industry knowledge. Our engineering team has over 5 years experience.
Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
Flexibility
JHD PCB prides ourselves on our ability to custom tailor programs around our customers' needs. JHD PCB takes time to listen to your unique business needs and then set out to surpass them.
JHD PCB would like to be your reliable partner in near future!
